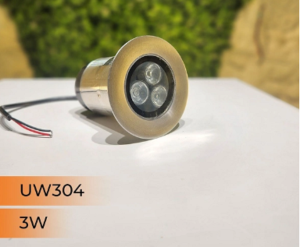

Underground LED Light

Ground Burial Light: - The 304 SS-IND 3W,6W and 9W Ground Burial Concealed LED Light is a heavy-duty, recessed architectural fixture engineered for high-durability outdoor "up-lighting."

Construction & Material

·         Bezel/Top Plate: Manufactured from high-grade 304 Stainless Steel, providing superior resistance to corrosion, rust, and oxidation compared to standard aluminum trims.

·         Housing Body: Features a Die-cast Aluminum heat-sink body coated with an anti-corrosive powder finish to ensure efficient heat dissipation and internal component longevity.

·         Lens: Fitted with a high-impact Toughened/Tempered Glass cover, designed to withstand significant foot traffic and light vehicular pressure without cracking.

Technical Performance

·         Waterproofing: Boasts an IP68 rating, meaning the unit is completely dust-tight and hermetically sealed against high-pressure water jets or temporary submersion in groundwater.

·         Optics: Equipped with a 3W, 6W & 9W high-lumen COB or Power LED chip, paired with a precision reflector to provide a concentrated vertical beam for illuminating trees, columns, or pathways.

·         Concealed Design: The fixture is designed to be flush-mounted with the ground surface using an included PVC mounting sleeve (outer jacket), which protects the main aluminum housing from direct soil acidity and moisture.

Electrical Specification

·         Driver: Includes an internal, potted (water-sealed) LED driver.

·         Voltage: Operates on standard AC 220V-240V (50Hz) power.

3Watt Size: 90 x 100 x 60 mm (Dia x Height x Cutting), 6W Size: 100 x 100 x 70 mm (Dia x Height x Cutting) and 9W Size: 125 x 100 x 85 mm (Dia x Height x Cutting)
