Leading Wholesaler, Retailer and Trader of 7w to 18w cob led downlight, Burial Light, LED COB Down Light, LED Ground Burial Light, LED Surface COB Light, Light, Out Door Lighting, outdoor wall light, Round Slim Panel LED Light and Square LED Down Light from Ghaziabad.
| Business Type | Supplier, Retailer, Trader |
| Size | Cut-Out Size ~90–110 mm (model dependent) and Outer Diameter~110–130 mm (model dependent) |
| Material | Body Material Die-Cast Aluminum,Die-Cast Aluminum |
| Shape | Round |
| Color | Green, Grey |
| Design | Die-Cast Aluminum |
| Power | Power Factor ≥ 0.90 |
| Wattage | 7W to 18W COB LED Downlight |
| Brightness | High Brightness Spot Light |
| Beam Angle | 24° / 38° |
| Light Color | 3000K / 4000K |
| Packaging | Box |
| Optics | 24° / 38° |
| Glare | Low glare, deep recessed design |
| Type | 7W to 18W COB LED Downlight |
| Input Voltage | 220–240V AC, 50Hz |
| Driver Type | External / Internal Constant Current Driver |
| Luminous Efficacy | 100–120 lm/W |
| Operating Temperature | -10°C to +45°C |
| CRI (Color Rendering Index) | ≥ 80 |
| IP Rating | IP20 (Indoor Use) |
| Life Span | ≥ 30,000 – 50,000 hours |
| Applications | Homes, Offices, Retail Stores, Showrooms, Hotels |
| Port | Uttar Pradesh |
| Delivery Time | 7 to 10 Working Days |

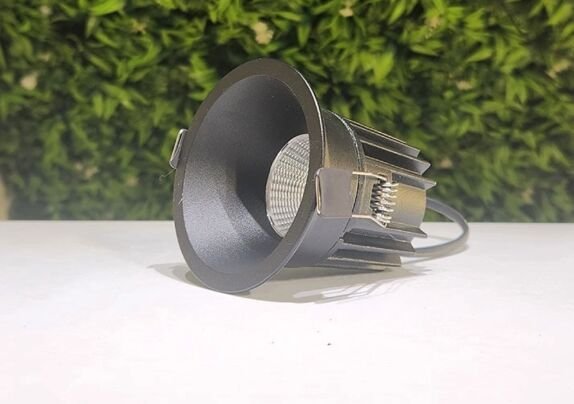

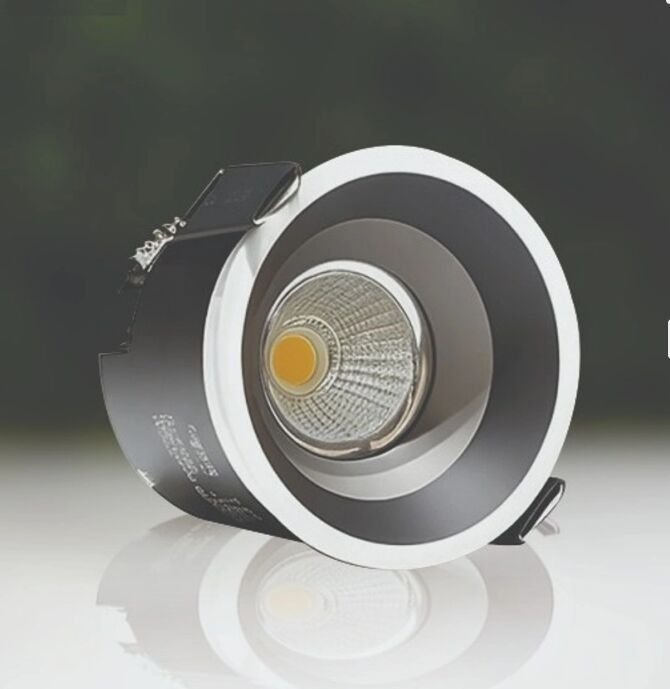

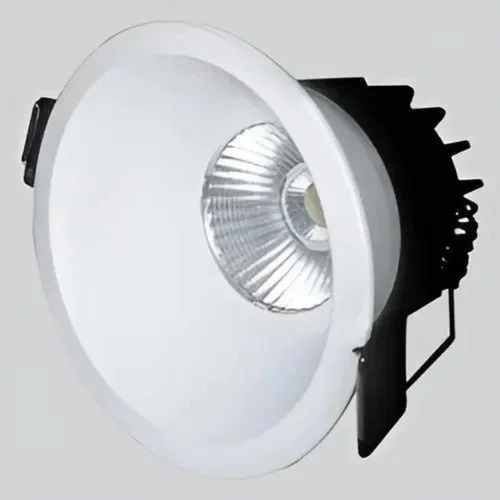

The 12W COB LED Downlight is a high-performance recessed lighting solution designed to deliver focused, high-intensity illumination with excellent energy efficiency. Built using advanced Chip-on-Board (COB) LED technology, this downlight provides superior output with uniform beam distribution, making it ideal for both accent and general lighting applications.
The luminaire features a robust aluminum housing with a premium powder-coated finish, ensuring durability, efficient heat dissipation, and long operational life. Its compact and sleek design allows seamless integration into modern false ceilings, enhancing the aesthetic appeal of interior spaces.
Equipped with a high-efficiency constant current LED driver, the downlight ensures stable, flicker-free performance across a wide voltage range. With high luminous efficacy and excellent color rendering, it enhances visual comfort and accurately represents colors, making it suitable for residential, commercial, and retail environments.
Technical Data Sheet – 12W COB LED Downlight|
Parameter |
Specification |
|
Product Type |
COB LED Recessed Downlight |
|
Wattage |
7W to 18W |
|
Light Source |
COB (Chip-on-Board) LED |
|
Body Material |
Die-Cast Aluminum |
|
Finish |
Powder Coated (White / Black optional) |
|
Mounting Type |
Recessed (False Ceiling) |
|
Input Voltage |
220–240V AC, 50Hz |
|
Driver Type |
External / Internal Constant Current Driver |
|
Power Factor |
≥ 0.90 |
|
Driver Efficiency |
≥ 85% |
|
Luminous Efficacy |
100–120 lm/W |
|
Lumen Output |
1200 – 1440 lumens |
|
Color Temperature (CCT) |
3000K / 4000K |
|
CRI (Color Rendering Index) |
≥ 80 |
|
Beam Angle |
24° / 38° |
|
Glare Control |
Low glare, deep recessed design |
|
Cut-Out Size |
~90–110 mm (model dependent) |
|
Outer Diameter |
~110–130 mm (model dependent) |
|
IP Rating |
IP20 (Indoor Use) |
|
Operating Temperature |
-10°C to +45°C |
|
Life Span |
≥ 30,000 – 50,000 hours |
|
Housing Color Options |
White / Black |
|
Dimmable Option |
Optional (Triac / 0-10V) |
|
Applications |
Homes, Offices, Retail Stores, Showrooms, Hotels |
| Business Type | Supplier, Retailer, Trader |
| Lighting Type | Recessed Ground Mounting |
| Application | Pathway / Walkway |
| Power Consumption | 3W |
| Lighting Color | Warm White |
| Voltage | 220–240V AC |
| Mounting Type | Recessed / In-wall |
| Shape | Round |
| Material | Aluminum,Die-cast aluminum housing with stainless steel top cover |
| Color | 3000K |
| Size | 3W, 6W & 9W |
| Product Code | NS Brothers-6010 |
| Delivery Time | 7 to 10 Working Days |
Description:

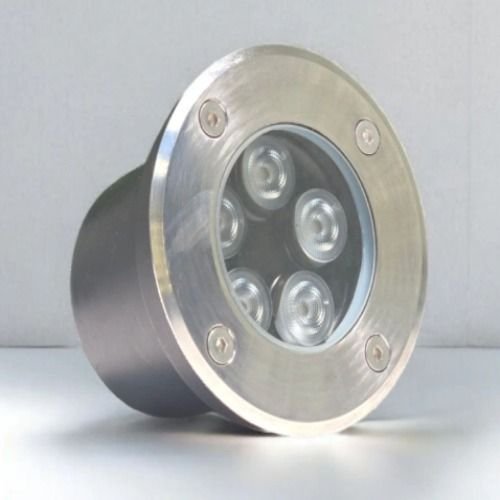

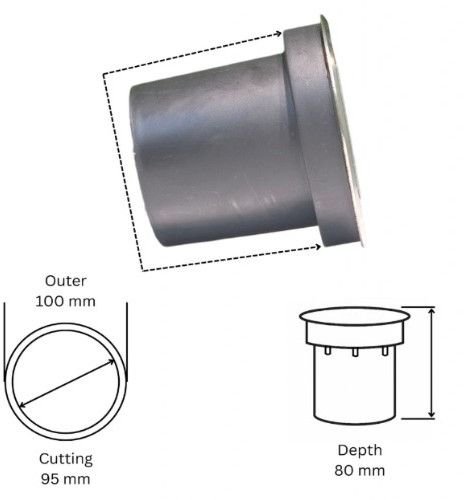

The 3W, 6W and 9W GBL Ground Burial LED Light with lens is a compact and efficient outdoor lighting solution designed for in-ground installation. Equipped with a precision optical lens, it provides focused and uniform illumination, making it ideal for highlighting landscapes and architectural elements. Its robust construction ensures durability under heavy loads and harsh weather conditions.
Key Features:
Technical Specifications:
3W LED Size: - 75 x 70mm (Dia x Height) (LX Price Rs. 485.00)
9W LED Size: - 95 x 80mm (Dia x Height) (LX Price Rs. 570.00)
| Business Type | Supplier, Retailer, Trader |
| Size | 7Watt Size (mm): 68 x 60 x 62 mm (O x C x H), 12Watt Size (mm): 85 x 75 x 88 mm (O x C x H), |
| Material | Aluminum body with PMMA diffuser |
| Shape | Round |
| Color | White/Black |
| Power | 7W, 10W, 12W, 15W, 20W, 28W |
| Wattage | 7W, 10W, 12W, 15W, 20W, 28W |
| Packaging | Box |
| Power Range | 7W, 10W, 12W, 15W, 20W, 28W |
| Input Voltage | AC 85-265V |
| Frequency | 50/60Hz |
| Power Factor | ≥0.9 |
| LED Type | COB LED |
| Color Temperature | 2700K / 3000K / 4000K / 6500K |
| Luminous Flux | 7W: ~600 lumens & 28W: ~2500 lumens |
| Color Rendering Index (CRI) | ≥80 |
| Beam Angle | 24°, 36°, 60° (depends on model) |
| Lifespan | >50,000 hours |
| Operating Temperature | -20°C to +45°C |
| IP Rating | IP44 / IP54 (depending on model) |
| Driver | Philips LED Driver (constant current) |
| Port | Uttar Pradesh |
| Payment Terms | Other |
| Delivery Time | 7 to 10 Working Days |

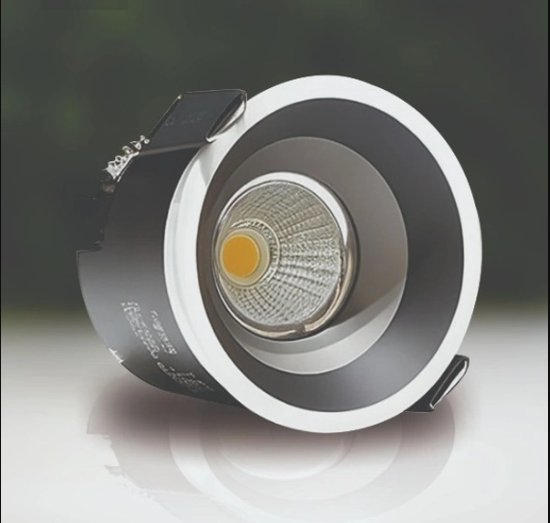

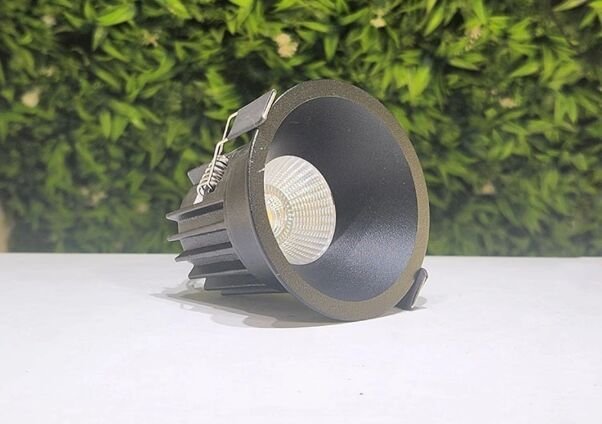

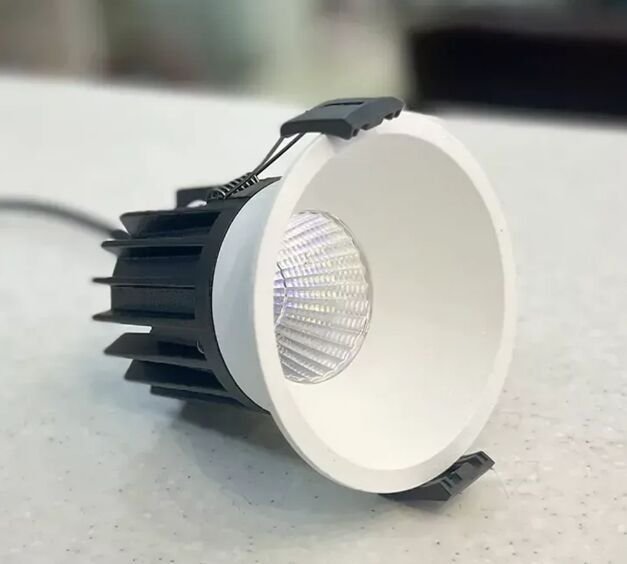

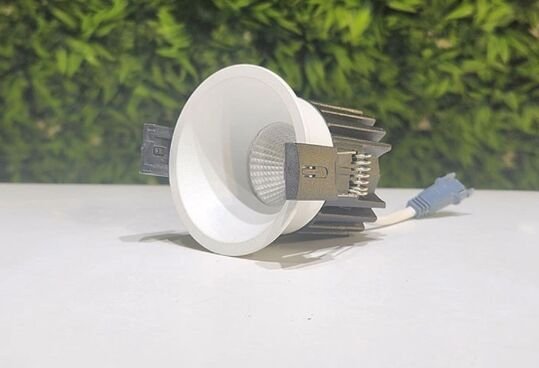

7W to 28W Recessed COB Downlight – Premium Quality LED with Philips Driver
The 7W to 28W Recessed COB Downlight is a high-performance, energy-efficient lighting solution designed for versatile indoor applications such as residential, commercial, and retail spaces. It features a high-quality COB (Chip on Board) LED, ensuring uniform light distribution, excellent color rendering, and long lifespan. Equipped with a reliable Philips driver, the downlight offers stable operation and enhanced safety.
Key Features:
Wide Power Range: 7W to 28W, catering to various illumination needs.
Premium COB LED: Provides high lumens output, superior light quality, and consistent color temperature.
Philips Driver: Ensures flicker-free operation, high efficiency, and durability.
Slim Recessed Design: Easy to install in ceilings with minimal space requirements.
Energy Efficient: Low power consumption with high luminous efficacy.
Long Lifespan: Up to 50,000 hours of maintenance-free operation.
Color Temperature Options: Available in 2700K, 3000K, 4000K, and 6500K.
CRI: ≥80 for vibrant, true-to-life colors.
Technical Data Sheet:
Parameter Specification
Power Range 7W, 10W, 12W, 15W, 20W, 28W
Input Voltage AC 85-265V
Frequency 50/60Hz
Power Factor ≥0.9
LED Type COB LED
Luminous Flux 7W: ~600 lumens; 28W: ~2500 lumens
Color Temperature 2700K / 3000K / 4000K / 6500K
Color Rendering Index (CRI) ≥80
Beam Angle 24°, 36°, 60° (depends on model)
Driver Philips LED Driver (constant current, flicker-free)
Lifespan >50,000 hours
Material Aluminum body with PMMA diffuser
IP Rating IP44 / IP54 (depending on model)
Operating Temperature -20°C to +45°C
| Business Type | Supplier, Retailer, Trader |
| Type | Ground Burial Light |
| Material | Aluminium + Stainless Steel + Toughened Glass |
| Color | 3000k to 6500k |
| Voltage | Operates on standard AC 220V-240V (50Hz) power. |
| Input Voltage | AC 85–265V / 220V |
| Power | 3W, 6W, 9W and 12W |
| Brand Name | JSL Lighting |
| Product Code | NS Brothers-6011 |
| Delivery Time | 7 to 10 Working Days |

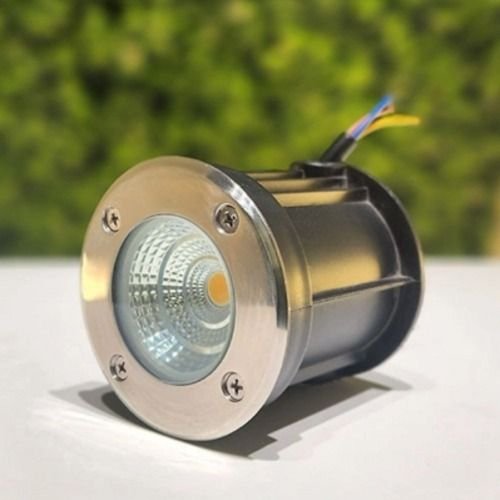

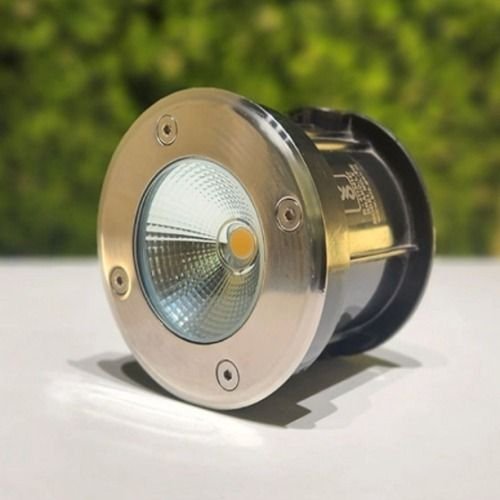

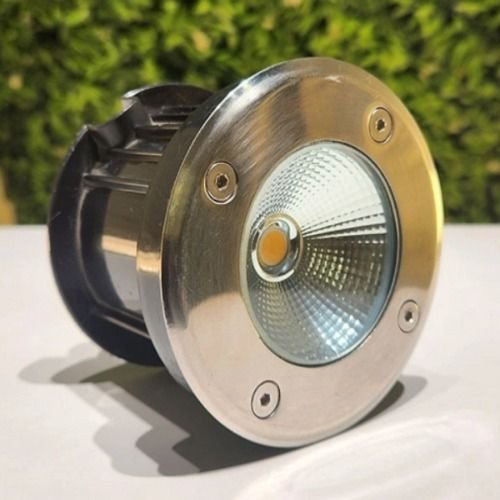

GBL Ground Burial LED Lights are high-performance outdoor lighting fixtures designed for installation in the ground to provide elegant and durable illumination. Available in multiple wattages (3W, 6W, 9W, and 12W), these lights are ideal for enhancing landscape aesthetics while ensuring safety and visibility.
Manufactured with robust materials such as die-cast aluminium housing and stainless-steel top covers, these lights offer excellent resistance to corrosion, pressure, and harsh weather conditions. Their waterproof construction (IP65–IP68 rated) ensures reliable operation in outdoor environments like gardens, pathways, driveways, and commercial landscapes. Fitting Size: - 3Watt Size: 65 x 75 mm (Dia x Height) 6W Size: 90 x 75 mm (Dia x Height), 9W Size: 100 x 75 mm (Dia x Height) & 12W Size: 120 x 90 mm (Dia x Height).
| Business Type | Supplier, Retailer, Trader |
| Packaging Sturcutre | Box |
| Packaging Sturcture | Box |
| Maximum Drive Current | Constant Current LED Driver (External/Internal) |
| Beam Type | 24° / 36° / 60° (optional) |
| Applications | Residential, Retail, Offices, Hotels, Corridors, Showrooms |
| Light Color | 3000K / 4000K / 6500K |
| LED Color | Body Color Black (custom Colors Optional) |
| Durability | Made From High-grade Die-cast/extruded Aluminum, The Body Provides Excellent Mechanical Strength And |
| Country of Origin | Made In India And Made In China |
| Material | Body Material Die-Cast / Extruded Aluminum,Die-Cast / Extruded Aluminum Black Powder Coated,Die-Cast / Extruded Aluminum |
| Type | Round Black RG Surface Cylinder Light (6W–18W),Surface Mounted Cylinder Light Round (Cylinder) |
| Color | Color Temperature (CCT) 3000K / 4000K / 6500K |
| Packaging | Box |
| Application | Indoor,Residential, Retail, Offices, Hotels, Corridors, Showrooms |
| Power Source | Light Source High Power LED / COB LED |
| Watt | 6W / 9W / 12W / 15W / 18W |
| Power Factor | ≥ 0.90 |
| Driver Efficiency | ≥ 85% |
| Luminous Efficacy | 90–110 lm/W (depending on wattage) |
| CRI (Color Rendering Index) | ≥ 80 |
| Glare Control | Low glare design |
| Operating Temperature | -10°C to +45°C |
| Life Span | ≥ 30,000–50,000 hours |
| Delivery Time | 7 to 10 Working Days |

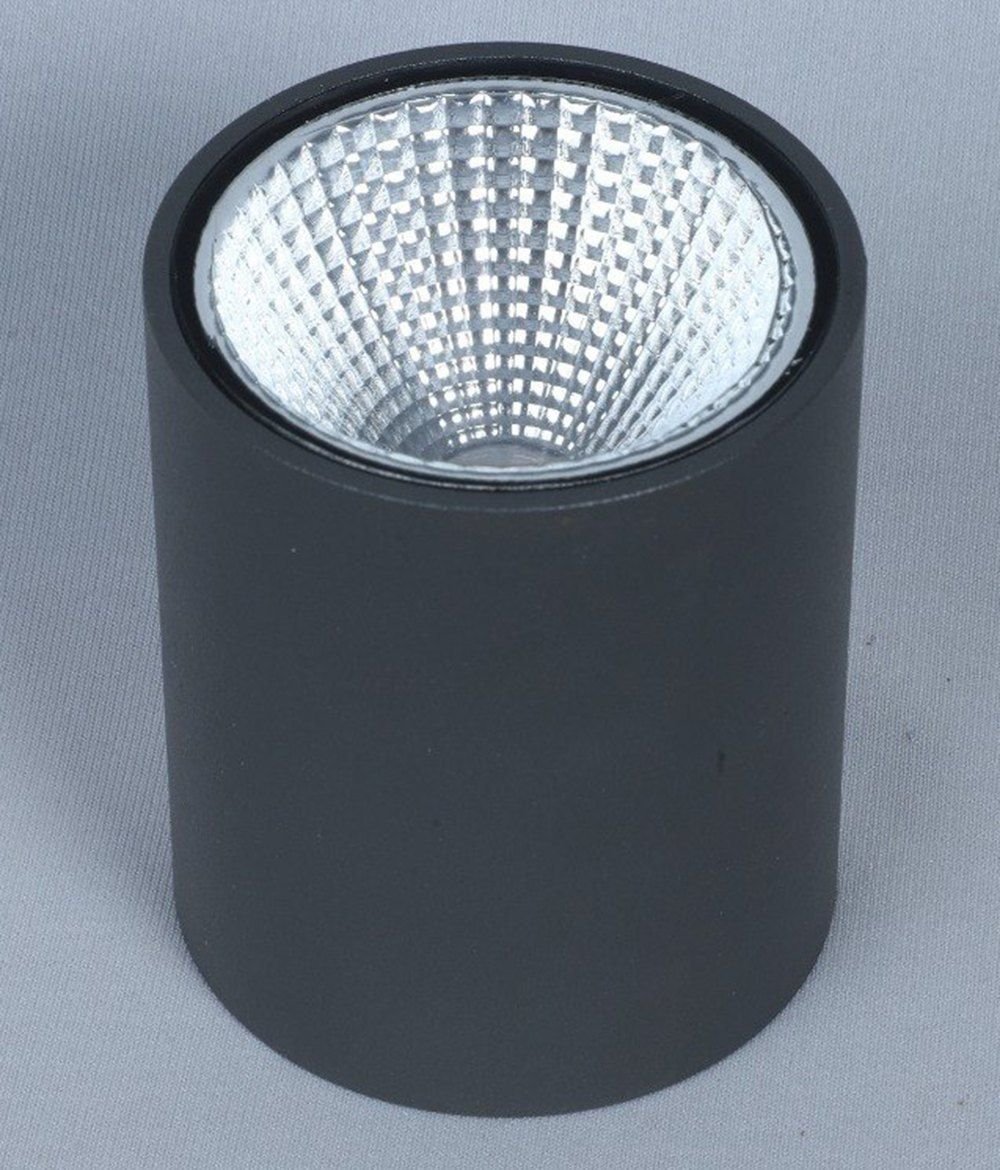

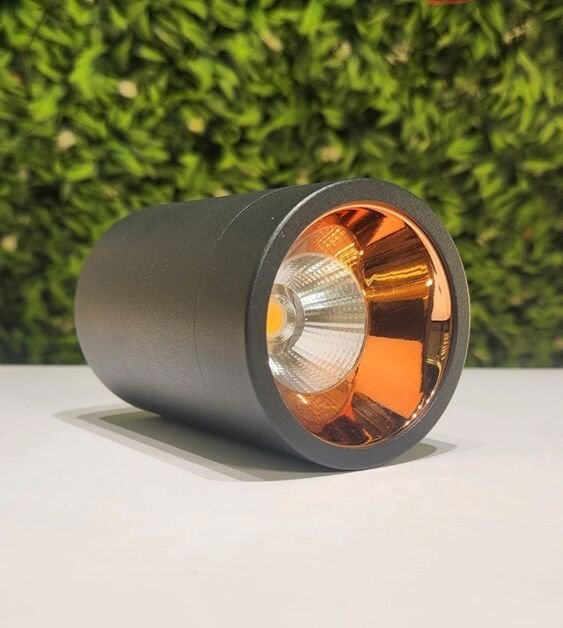

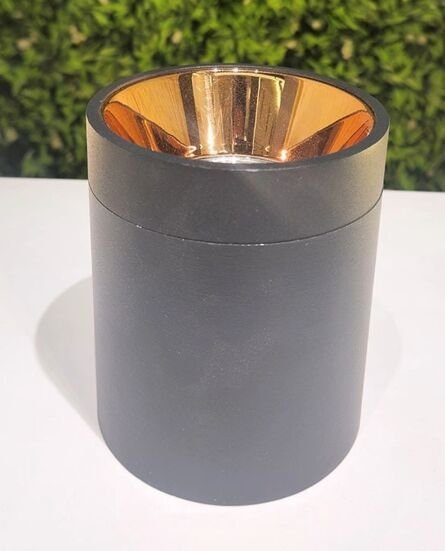

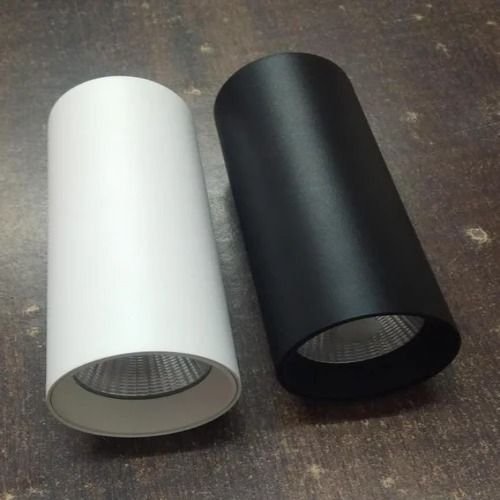

Product Description – Round Black RG Surface Cylinder Light (6W–18W)
The Round Black RG Surface Cylinder Light is a modern, aesthetically designed surface-mounted luminaire ideal for indoor architectural and decorative lighting applications. Crafted with a premium aluminum housing and finished in elegant black powder coating, this fixture adds a sophisticated touch to contemporary interiors such as residential spaces, retail outlets, showrooms, hotels, and offices.
The cylindrical design ensures focused and glare-controlled illumination, making it suitable for accent lighting as well as general lighting. The luminaire is equipped with high-efficiency LED technology mounted on an advanced heat-dissipating structure, ensuring optimal thermal management and extended operational life.
It incorporates a high-quality constant current LED driver that delivers stable performance and flicker-free light output. Available in wattages ranging from 6W to 18W, this surface cylinder light provides flexibility in lighting design while maintaining energy efficiency and low maintenance requirements.
Technical Data Sheet – Round Black RG Surface Cylinder Light
|
Parameter |
Specification |
|
Product Type |
Surface Mounted Cylinder Light |
|
Shape |
Round (Cylinder) |
|
Body Material |
Die-Cast / Extruded Aluminum |
|
Finish |
Black Powder Coated |
|
Wattage Options |
6W / 9W / 12W / 15W / 18W |
|
Light Source |
High Power LED / COB LED |
|
Input Voltage |
220–240V AC, 50Hz |
|
Driver Type |
Constant Current LED Driver (External/Internal) |
|
Power Factor |
≥ 0.90 |
|
Driver Efficiency |
≥ 85% |
|
Luminous Efficacy |
90–110 lm/W |
|
Lumen Output |
540 lm – 1980 lm (depending on wattage) |
|
Color Temperature (CCT) |
3000K / 4000K / 6500K |
|
CRI (Color Rendering Index) |
≥ 80 |
|
Beam Angle |
24° / 36° / 60° (optional) |
|
Glare Control |
Low glare design |
|
Mounting Type |
Surface Mounted (Ceiling) |
|
Body Color |
Black (custom colors optional) |
|
IP Rating |
IP20 (Indoor Use) |
|
Operating Temperature |
-10°C to +45°C |
|
Life Span |
≥ 30,000–50,000 hours |
|
|
|
|
Application |
Residential, Retail, Offices, Hotels, Corridors, Showrooms |
| Business Type | Supplier, Retailer, Trader |
| Voltage | Operates on AC 220–240V power |
| Material | Durable die-cast aluminum housing and a stainless steel top frame,die-cast aluminum housing and a stainless steel top frame |
| Size | 9Watt LED Light - Size: 300 x 90 x 70 mm (L x W x H) |
| Type | Ground Burial Light,Ground Burial |
| Color | 3000k to 6500k |
| Input Voltage | AC 85–265V / 220V |
| Power | 9Watt and 12Watt |
| Brand Name | Apra |
| Product Code | NS Brothers-6012 |
| Delivery Time | 7 to 10 Working Days |

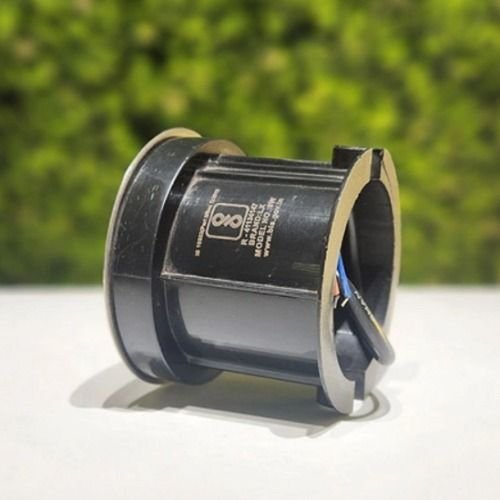

Ground burial (inground) light constructed with durable die-cast aluminum housing and a stainless steel top frame for long-lasting outdoor performance. Fitted with toughened clear or frosted glass, suitable for walk-over applications. Equipped with a high-efficiency LED light source, available in multiple wattages and color temperatures (Warm White / Neutral White / Cool White). Operates on AC 220–240V power supply. Designed with IP67/IP68 protection rating for waterproof and dustproof operation, making it ideal for underground installation. Suitable for pathways, landscapes, gardens, driveways, and architectural lighting applications.
9Watt LED Light - Size: 300 x 90 x 70 mm (L x W x H)
12Watt LED Light Size: 500 x 90 x 70 mm (L x W x H)
| Business Type | Supplier, Retailer, Trader |
| Lighting Type | Wall Light |
| Power Consumption | 3W and 6Watt |
| Lighting Source | LED |
| Installation Type | Wall Light |
| Voltage | Input Voltage 110–240V AC, 50–60Hz |
| Usage/Application | Residential Streets |
| Material | Die-Cast Aluminium,die-cast aluminium with a black powder-coated finish |
| Lighting Color | Color Temperature (CCT) 2700K / 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| Type | Wall Light |
| Color | Color Temperature (CCT) 2700K / 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
| Product Code | NS Brothers Lite 7006 |
| Delivery Time | 7 to 10 Working Days |

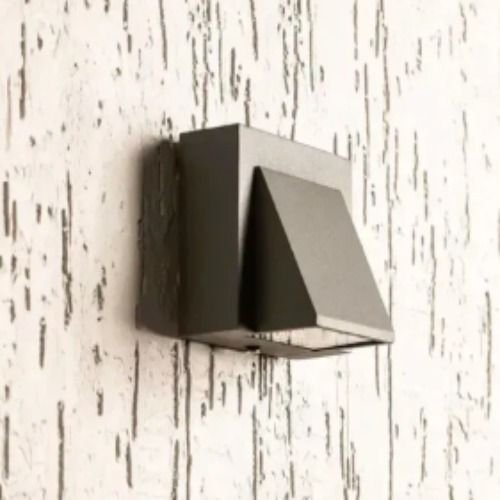

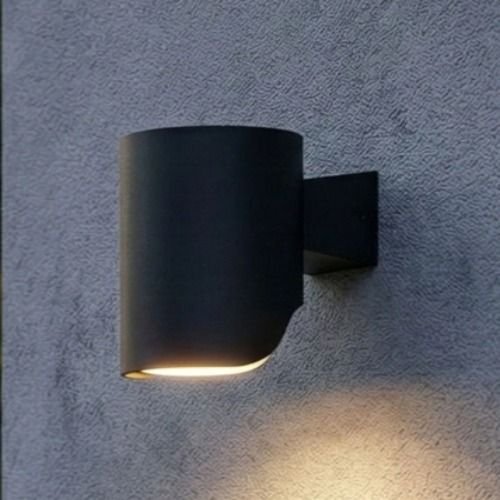

The 6W Black Outdoor Down Wall Light is a sleek, energy-efficient LED luminaire designed for outdoor wall installation. It provides focused downward illumination, enhancing pathways, entrances, gardens, and building facades.
Constructed from durable die-cast aluminium with a black powder-coated finish, it offers excellent resistance to corrosion and harsh weather. With an IP65 rating, the light is protected against dust and water, making it suitable for all outdoor environments.
The integrated LED provides uniform, glare-free illumination, consuming minimal energy while offering a long operational life. Its modern design complements both residential and commercial architecture, creating functional and decorative lighting effects.
Technical Specifications
|
|
Power | 6 Watts |
Input Voltage | 110–240V AC, 50–60Hz |
LED Type | High-power SMD LED |
Luminous Flux | 480–650 lumens |
Color Temperature (CCT) | 2700K / 3000K (Warm White), 4000K (Neutral White), 6500K (Cool White) |
Beam Angle | 15°–60° (depending on model) |
CRI | ≥80 |
Body Material | Die-cast Aluminium |
Finish | Black powder-coated |
Diffuser | Clear or frosted polycarbonate |
Mounting | Wall-mounted |
Protection | IP65 (Dust & Water resistant) |
Impact Resistance | IK08 |
Operating Temperature | -20°C to +50°C |
Lifespan | 30,000 – 50,000 hours |
1X 3Watt LED light Size (mm): 75 x 80 x 65 mm and 2X3W LED Light Size (mm): 140 x 80 x 65 mm
2X3W LED Light Size (mm): 140 x 80 x 65 mm
| Business Type | Supplier, Retailer, Trader |
| Lighting Type | Wall Light |
| Power Consumption | 10W |
| Lighting Source | COB LED |
| Installation Type | Wall Mounted |
| Voltage | 220–240V AC |
| Usage/Application | Residential Streets |
| Material | Die-Cast Aluminium,• Body Material: Die-cast Aluminum (powder-coated finish) • Diffuser: Clear / Frosted glass or PMMA lens |
| Lighting Color | 3000K to 6500K |
| Type | LED Wall Light |
| Color | 3000k to 6500k |
| Product Code | NS Brothers-7005 |
| Delivery Time | 7 to 10 Working Days |

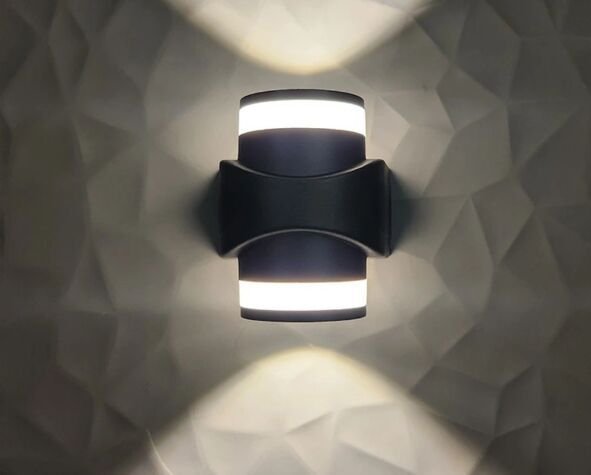

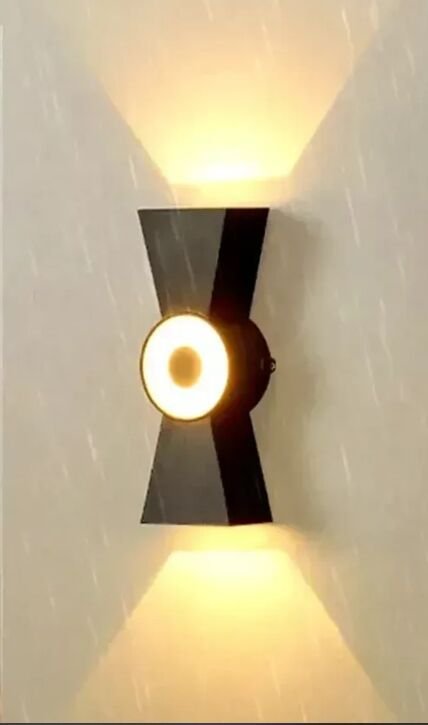

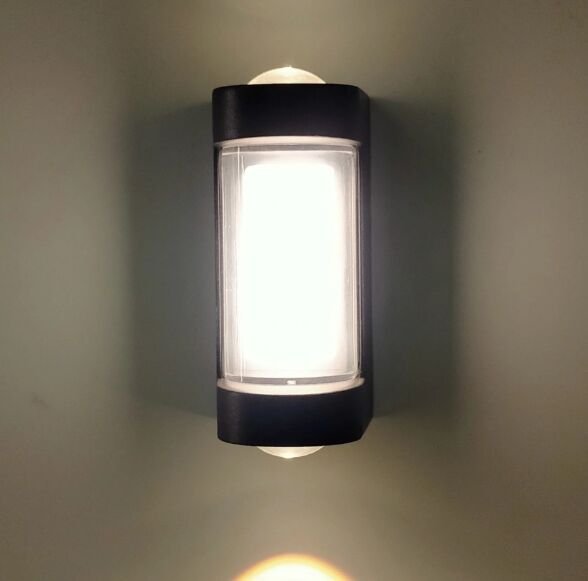

LED Wall Light is a stylish and decorative up-down wall-mounted fixture designed for both indoor and outdoor applications. Its sleek and contemporary design creates a dual beam lighting effect (upward and downward), enhancing the visual appeal of building facades, entrances, balconies, and garden walls.

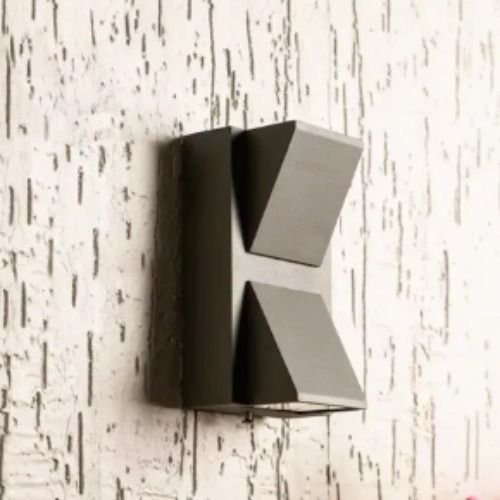

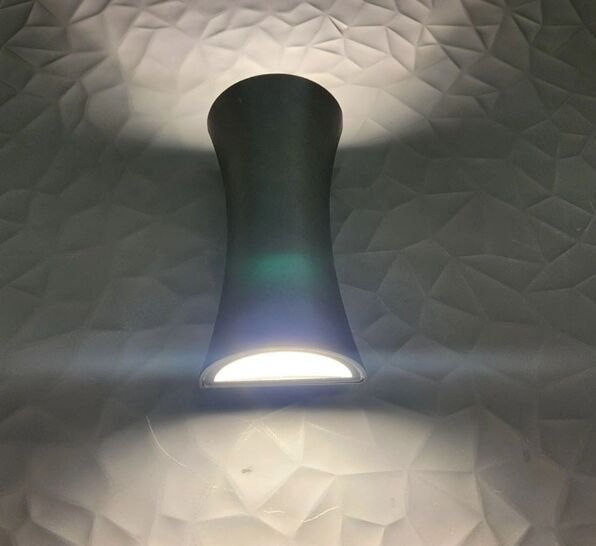

Constructed with a durable die-cast aluminum body, the light is weather-resistant and ensures long-lasting performance. It is equipped with a high-efficiency LED light source that delivers bright and uniform illumination with low power consumption. With an IP65 protection rating, it is resistant to dust and water, making it reliable for outdoor use. Ideal for residential and commercial spaces, it provides excellent architectural highlighting and ambient lighting.
Technical Specifications:
| Business Type | Supplier, Retailer, Trader |
| Brand Name | LX Lighting |
| Body Material | Recessed Round Slim LED Panel Light – 8w 12w 16w 24w (PVC Body) |
| Lighting Type | Light – 8w 12w 16w 24w (PVC Body) |
| Shape | Round |
| Color Temperature | Color Options: Cool White / Warm White / Neutral White, |
| Power Consumption | Light – 8w 12w 16w 24w |
| Lighting Color | Color Options: Cool White / Warm White / Neutral White |
| Application | Indoor |
| Type | Recessed Round Slim LED Panel Light |
| Color | White |
| Packaging | Box |
| Power Source | Electric |
| Voltage | AC 220–240V, |
| Wattage | 8w 12w 16w 24w |
| Product Code | NS Brother Lite-5501 |
| Delivery Time | 7 to 10 Working Days |
Recessed Round LED Panel Light, designed to deliver bright, energy-efficient lighting with a clean, minimal look. Its ultra-slim design fits perfectly into false ceilings, making it ideal for homes and commercial spaces.
right & Efficient Lighting (8W)
Provides uniform illumination with low power consumption—perfect replacement for traditional ceiling lights.
Slim & Recessed Design
Ultra-thin body ensures a flush finish with false ceilings for a neat and modern appearance.
Durable PVC Body
Lightweight, rust-proof, and heat-resistant PVC construction ensures long-lasting performance.
Glare-Free Soft Light
Designed with a diffuser for smooth, flicker-free lighting that is easy on the eyes.
Energy Saving
Consumes up to 80% less electricity compared to conventional bulbs.
Easy Installation
Comes with spring clips for quick and hassle-free ceiling mounting.
Wattage: 8W, 12w 16w 24w, Shape: Round, Mount Type: Recessed,Body Material: PVC,Light Color Options: Cool White / Warm White / Neutral White,Voltage: AC 220–240V,Cut-Out Size: ~3–4 inches (varies by model) & Lifespan: 20,000–30,000 hours
| Business Type | Supplier, Trader |
| Body Material | Die-cast Aluminum,Die Cast Aluminum |
| Type | LED Down Light, 3W To 24W,Square |
| Shape | Square |
| Color | 3000K to 6500K |
| Packaging | Box |
| Usage | Indoor |
| Power Source | Electric |
| Voltage | Voltage Input- AC 85V/AC 265V |
| Fitting Colour | White |
| Wattage | 3 Watt to 28 Watt |
| Lumens Output | Minimum-20 lm & Maximum-1,800 lm |
| Power Factor | (PF) ≥0.90 |
| Operating Temp | -30°C to +50°C |
| IP Rating | IP20 to IP44 |
| Lifespan | 30,000 hrs to 50,000 hrs |
| Driver Type | Constant Current & Constant Voltage |
| Product Code | 940540 |
| Payment Terms | Other |
| Delivery Time | 7 to 10 Working Days |

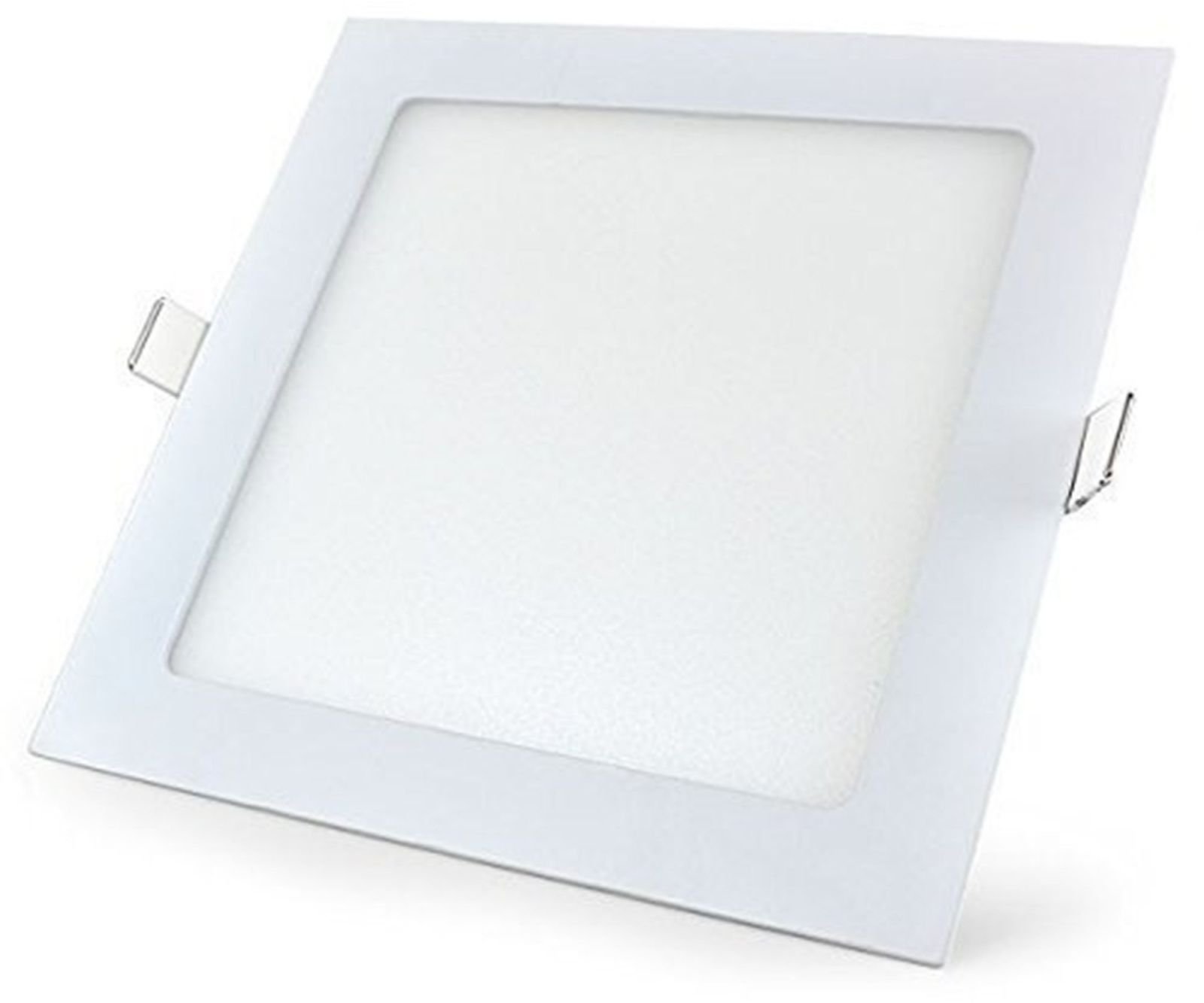

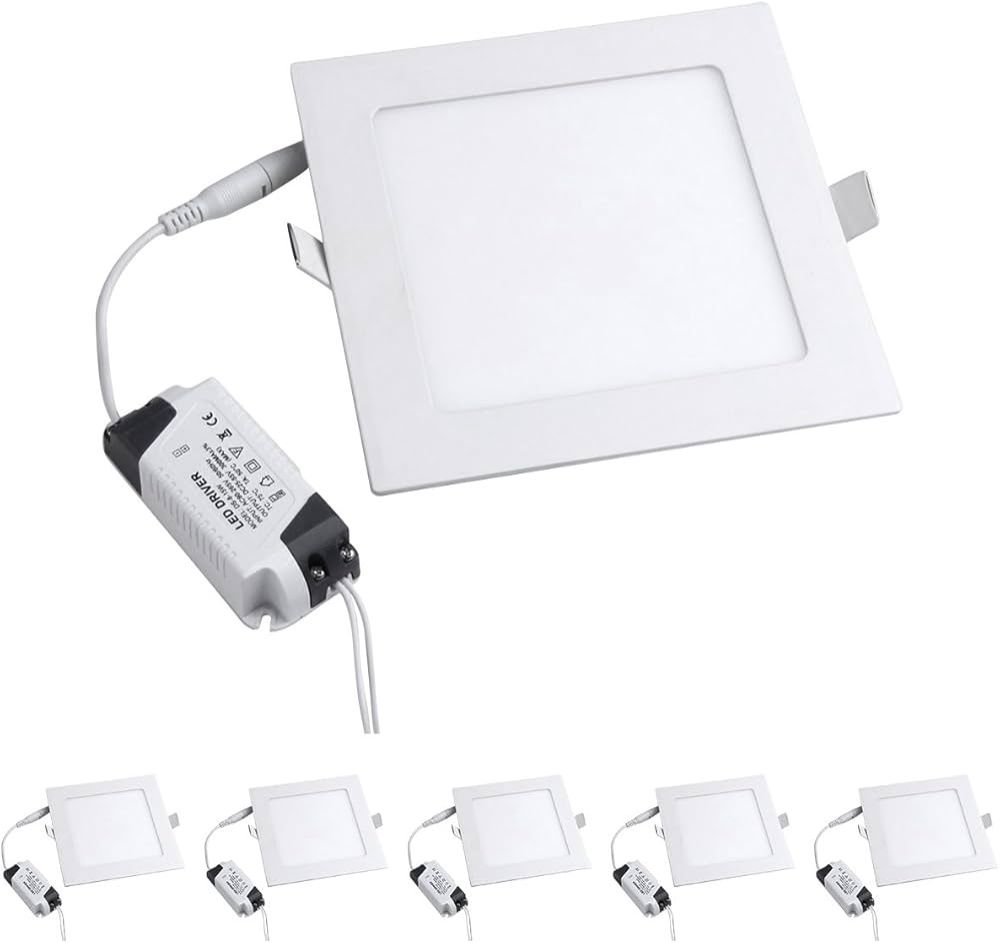

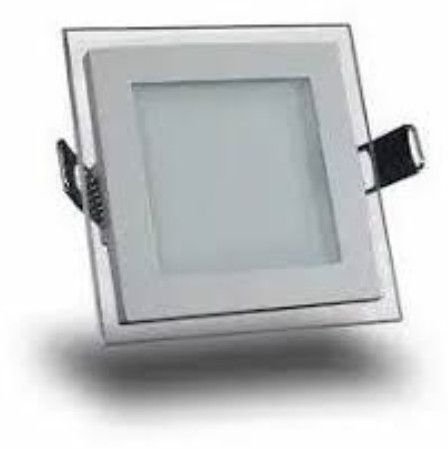

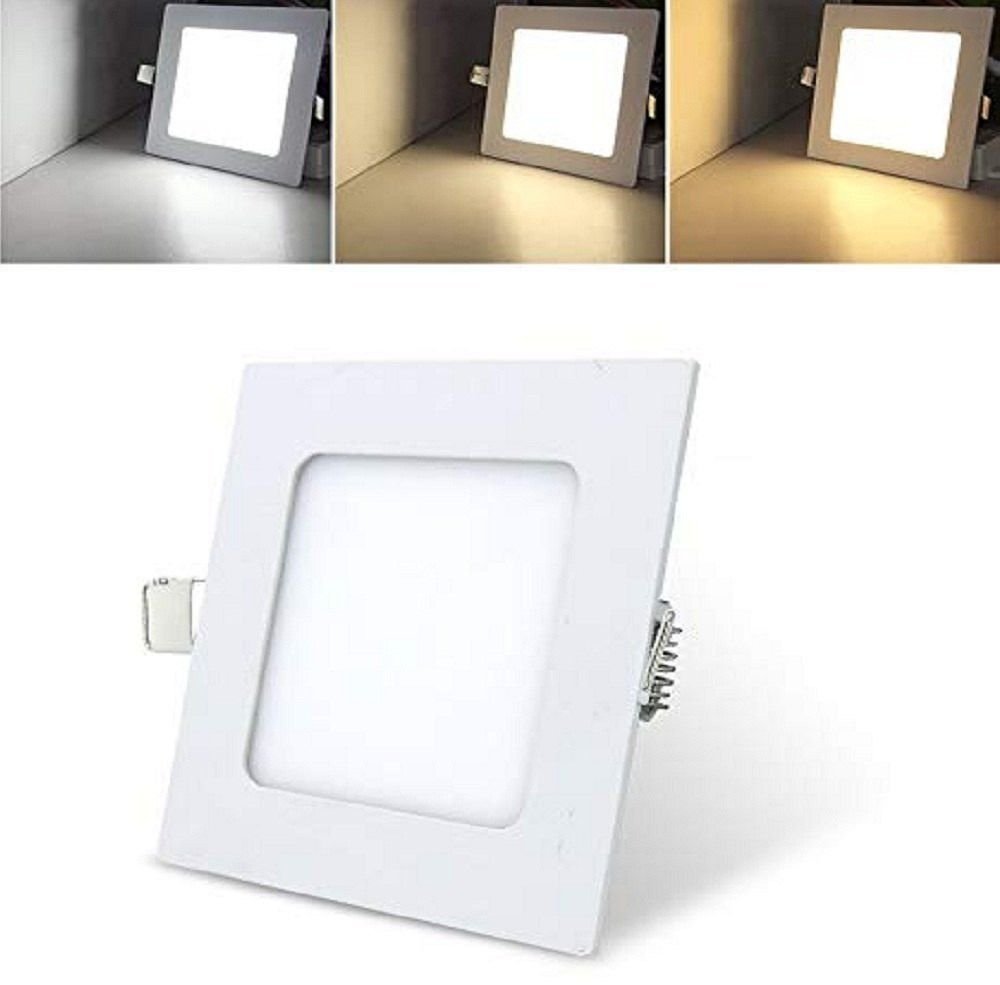

Square LED Recessed Downlight Panel Light is a modern, ultra-thin lighting solution designed for both residential and commercial ceilings. It combines sleek design aesthetics with high energy efficiency and long lifespan. The integrated LED driver ensures stable performance and safety in various environments.
This light uses side-emitting LED technology with a Light Guide Plate (LGP) and Diffuser Lens, producing uniform, glare-free illumination ideal for offices, hotels, retail stores, schools, and living areas.
|
Parameter |
Minimum Value |
Maximum Value |
|
Wattage |
3W |
28W |
|
Lumens Output |
250 lm |
1,800 lm |
|
Voltage Input |
AC 85V |
AC 265V |
|
Power Factor (PF) |
≥0.90 |
≥0.95 |
|
Color Rendering Index (CRI) |
≥80 |
≥90 |
|
Beam Angle |
90° |
120° |
|
Operating Temp. |
-30°C |
+50°C |
|
Dimming Range |
Down to 5% |
Up to 100% |
|
IP Rating |
IP20 |
IP44 |
|
Lifespan |
30,000 hrs |
50,000 hrs |
|
Driver Type |
Constant Current |
Constant Voltage |
Raise your Query
Hi! Simply click below and type your query.
Our experts will reply you very soon.
